• Sizes: 1/2" to 2"
• Pressure Ratings: 150# Το 2500#
• Carbon steel LF2, F51, Duplex, Super Duplex, Monel 400, Hastelloy C276, Inconel 625 Titanium, Incolloy 825

APPLICATION & INSTALLATION

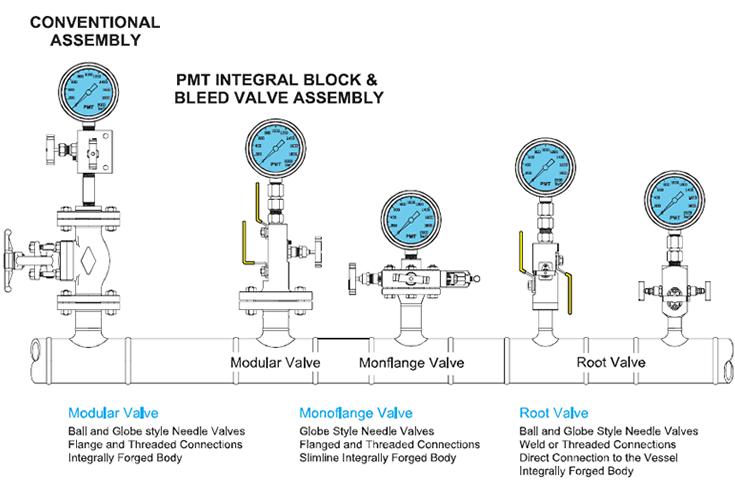

Conventional Installation

• A welded flange, connected to a primary ANSI class isolating valve. The primary valve will be connected to a secondary instrument valve. A pressure gauge or transmitter will then be installed downstream of the instrument valve.

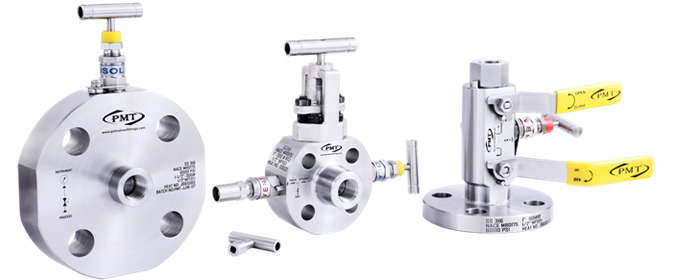

PMT Block & BleedValve

• A one-piece integral forging incorporating up 3 ball valve or mixture of ball and needle design.
• Improved safety: leak paths reduced by up to 60%
• Reduced costs: installation and component costs reduced by up to 70%
• Reduced weight: by up to 80%
• Reduced susceptibility to problems caused by vibration.

Features

• Bubble tight shut off.
• locking and anti tamper devices for all valve types available option.
• Positive lever stop.
• User preferred handles.
• Permanent affixed reference label.
• Raised face and ring type joint flange styles.
• Optional materials include Super Duplex, Monel, Hastelloy, Inconel.

Application

• Double block and bleed instrument isolation
• Gauge isolation
• Instrument drain
• Chemical injection connection
• Sample connections
• Chemical seal instrument isolation
• Piping/instrument interface
• Direct mounting of insturments
• Remote mounting of instruments

Advantages

• More compact design
• Reduced weight
• Reduced height
• Reduced leakage points
• Reduced effect of system vibration
• Supporting brackets are not required

Monoflange valve

PMT Monoflange

• Improved safety: leak paths reduced by up to 60%, less susceptibility to vibration
• Reduced costs: installation and component costs saving up to 80%
• Reduced weight: up to 85%

Features

• Combined needle and OS & Y valves available.
• Raised face and ring type joint flange styles.
• One-piece forged construction flange as standard.
• Locking and anti tamper devices for all valve types available. (as option)
• Standard materials of Stainless steel ASTM A182 F316/F316L, Carbon steel ASTM
• Optional materials include Super Duplex, Monel, Hastelloy, Inconel.

Applications

• Isolation
• Block and Bleed
• Double Block and Bleed
• Pressure Measurement
• Chemical Injection
• Level Measurement
• Sampling
• Flow Measurement
