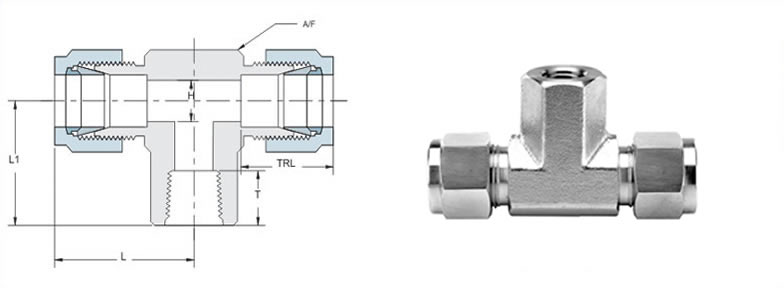

Tube Fittings Female Branch Tee

Dimension Inch
TUBE OD	NPT MALE THREAD SIZE	PART NO.	L	L1	TRL (TUBE REST LEANTH)	T	H	A/F HEX
1/8	1/8	2-FBT-2N	1.94	0.75	0.50	0.41	0.09	1/2
1/4	1/8	4-FBT-2N	2.12	0.75	0.60	0.41	0.19	1/2
1/4	1/4	4-FBT-4N	2.34	0.88	0.60	0.59	0.19	11/16
3/8	1/4	6-FBT-4N	2.46	0.88	0.66	0.59	0.28	11/16
3/8	3/8	6-FBT-6N	2.62	0.88	0.66	0.59	0.28	13/16
3/8	1/2	6-FBT-8N	2.84	1.12	0.66	0.78	0.28	1
1/2	1/4	8-FBT-4N	2.84	0.88	0.90	0.59	0.41	13/16
1/2	3/8	8-FBT-6N	2.84	0.88	0.90	0.59	0.41	13/16
1/2	1/2	8-FBT-8N	3.06	1.12	0.90	0.078	0.41	1

Dimension In Metric
TUBE OD	NPT MALE THREAD SIZE	PART NO.	L	L1	TRL (TUBE REST LEANTH)	T	H	A/F HEX
6	1/8	6M-FBT-2N	53.9	18.8	15.3	10.4	4.8	1/2
6	1/4	6M-FBT-4N	53.9	23.4	15.3	15.0	4.8	1/2
8	1/8	8M-FBT-2N	59.7	20.8	16.2	10.4	4.8	5/8
8	1/4	8M-FBT-4N	59.7	25.4	16.2	15.0	6.4	5/8
10	1/4	10M-FBT-4N	67.0	26.2	17.2	15.0	7.1	13/16
12	3/8	12M-FBT-6N	72.0	28.2	22.8	15.0	9.5	13/16
12	1/4	12M-FBT-4N	72.0	28.2	22.8	15.0	7.1	13/16
12	1/2	12M-FBT-8N	72.0	33.0	22.8	19.8	9.5	13/16
16	1/2	16M-FBT-8N	77.6	35.8	24.4	19.8	11.9	1
